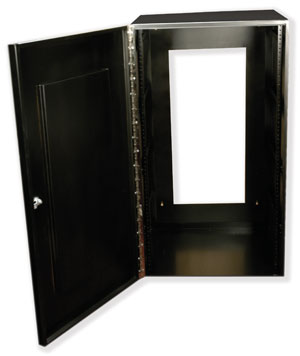

9240 Hanging Metal Rack |
OPTIONS
-

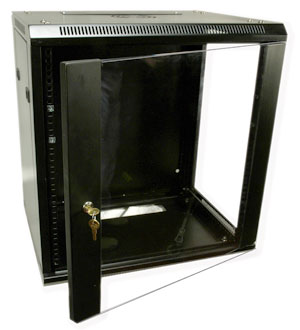

9240 - 12P Plexiglas door
-
9240 - 12S Steel door
-
9240 - 12C 14 ga. CRS Cradle
-
9240K Key lock for door or side panel
|
|
An attractive and versatile wall rack that compliments any system.
Application
The fully welded 9240 19" wall rack mounts directly through 16" centered rear panel mount holes or when used with our optional cradle the 9240 can be preloaded and tested off site and when ready it mounts to the pre installed cradle onsite. Cable connections are then easily accessed through the removable side panels. An optional Plexiglas or steel door is available as well as locks for doors and side panels adding total security.
Features
- Standard 19" rack opening.
- Top panel fan knock out.
- 16 ga. CRS black powder coat.
- Fixed front and rear captive nut rack rail.
- Top and bottom knock out plate.
- 300 mm. square rear knock out.
- 12 rack space.
- 50 captive nuts included.
- 19.75" depth.
- Removable side panels with optional lock available.
- Rear panel mounting holes 16" on center.
|
Economy Hanging Metal Rack |
|
Economy Metal Hanging Rack
An economical solution to cost sensitive systems. Easily mounts on preinstalled back pan.
Application
With three sizes to choose from our 19" econo wall rack fits most applications. The 1" deep locking door adds more distance to the overall depth allowing for greater storage capacity. Constructed from 18 ga. CRS this fully welded construction is finished with a durable black powder coat.
Features
- 18 ga. CRS black powder coat.
- Large rear cable access.
- Rear back pan with 16" on center mounting holes.
- Adjustable 10 - 32 tapped front rack rail.
- Numerous cable tie points.
- Three sizes 8, 14 & 20 space.
- Top and bottom electrical knock outs.
- Vented sides.
OPTIONS
|
