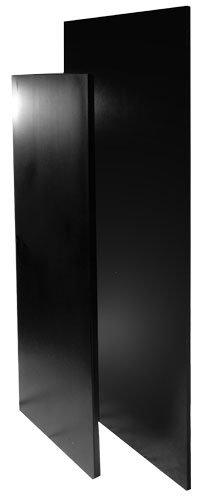

Side Panel

Wood / Steel Side Panel

When an enclosed rack is preferred.

Wood Side Panel

Made from black high density particle board. Attaches to the sides of any Gangable or Economy rack to obtain an attractive aesthetic finish.

Features

  • 5/8: black high density particle board.
  • Hardware included.
  • Easily attaches to rack with slip bracket.
  • 9202 series - 19" deep for frame racks.
  • 9203 series - 25" deep for gangable racks.
  • Available in 7 sizes, 2 depths 19" and 25".

Steel Side Panel

These rugged panels quickly enclose and enhance AVMs gangable or frame racks. Panels conveniently slip on the side of rack and secures from the inside for added security.

Features

  • 16 ga. steel black powder coat finish.
  • Hardware included.
  • Easily attaches to rack with slip bracket.
  • 9204 series 19" deep for frame racks.
  • 9205 series 25" deep for gangable racks.
  • Available in 7 sizes, 2 depths 19" and 25
Wood Side Panel
Code Rack Space Height Depth Material
9202 - 8   8 17.75" 19"  5/8" black high density particle board
9202 - 14    14 28.25" 19"  5/8" black high density particle board
9202 - 21  21 40.25" 19"  5/8" black high density particle board
9202 - 27  27 51.00" 19"  5/8" black high density particle board
9202 - 37  37 68.50" 19"  5/8" black high density particle board
9202 - 40 40 73.75" 19"  5/8" black high density particle board
9202 - 44 44 80.75" 19"  5/8" black high density particle board

9203 - 14   14 28.50" 25"  5/8" black high density particle board
9203 - 18    18 35.50"  25"  5/8" black high density particle board
9203 - 21  21 40.75" 25"  5/8" black high density particle board
9203 - 27  27 51.25" 25"  5/8" black high density particle board
9203 - 37  37 68.75" 25"  5/8" black high density particle board
9203 - 40 40 74.00" 25"  5/8" black high density particle board
9203 - 44 44 81.00" 25"  5/8" black high density particle board
Steel Side Panel
Code Rack Space Height Depth Material Finish
9204 - 8   8 17.75" 19"  16 ga. CRS black powder coat
9204 - 14    14 28.25" 19"  16 ga. CRS black powder coat
9204 - 21  21 40.25" 19"  16 ga. CRS black powder coat
9204 - 27  27 51.00" 19"  16 ga. CRS black powder coat
9204 - 37  37 68.50" 19"  16 ga. CRS black powder coat
9204 - 40 40 73.75" 19"  16 ga. CRS black powder coat
9204 - 44 44 80.75" 19"  16 ga. CRS black powder coat
          black powder coat
9205 - 14   14 28.50" 25"  16 ga. CRS black powder coat
9205 - 18    18 35.50"  25"  16 ga. CRS black powder coat
9205 - 21  21 40.75" 25"  16 ga. CRS black powder coat
9205 - 27  27 51.25" 25"  16 ga. CRS black powder coat
9205 - 37  37 68.75" 25"  16 ga. CRS black powder coat
9205 - 40 40 74.00" 25"  16 ga. CRS black powder coat
9205 - 44 44 81.00" 25"  16 ga. CRS black powder coat
