Welded Metal Rack

Welded Metal Rack
9220W and 9225W

The 9225W series welded rack is a fully welded constructed rack with adjustable front and rear rack rail. It has a vented front with rear electrical knockouts and open base for easy cable entry, and a choice of four different top configurations.

Application

Used when a rugged stand alone enclosed instrument rack is required.

Features

  • 20" and 25" depth.
  • Adjustable front and rear 10 - 32 tapped rack rail.
  • Vented top.
  • Large cable entry in base.
  • Electrical knock outs at rear, vented front.
  • 16 ga. CRS black powder coat.
  • Leveling feet.

Options

    Front & rear locking door order series 9210 (solid) 9211 series (plexiglass) 9212 (vented)
  • Choice of for top inserts, solid, vented, 2 fan, 4 fan cutouts
  • Casters (9200 - 25, 9200 - 30, 9200 - 35)
  • Caster skirt (9200) for 25" depth, 9201 for 20" depth
  • Available in 7 sizes..
Code Depth Rack Space Height Width Weight (lbs) Material Finish
9220W - 14 20" 14 28.50" 22.25" 57 16 ga. CRS black powder coat
9220W - 18 20" 18 35.50" 22.25" 62 16 ga. CRS black powder coat
9220W - 21 20" 21 40.75" 22.25" 69 16 ga. CRS black powder coat
9220W - 27 20" 27 51.25" 22.25" 76 16 ga. CRS black powder coat
9220W - 37 20" 37 68.75" 22.25" 88 16 ga. CRS black powder coat
9220W - 40 20" 40 74.00" 22.25" 100 16 ga. CRS black powder coat
9220W - 44 20" 44 81.00" 22.25" 106 16 ga. CRS black powder coat

9225W - 14 25" 14 28.50" 22.25" 62 16 ga. CRS black powder coat
9225W - 18 25" 18 35.50" 22.25" 68 16 ga. CRS black powder coat
9225W - 21 25" 21 40.75" 22.25" 76 16 ga. CRS black powder coat
9225W - 27 25" 27 51.25" 22.25" 85 16 ga. CRS black powder coat
9225W - 37 25" 37 68.75" 22.25" 100 16 ga. CRS black powder coat
9225W - 40 25" 40 74.00" 22.25" 112 16 ga. CRS black powder coat
9225W - 44 25" 44 81.00" 22.25" 120 16 ga. CRS black powder coat

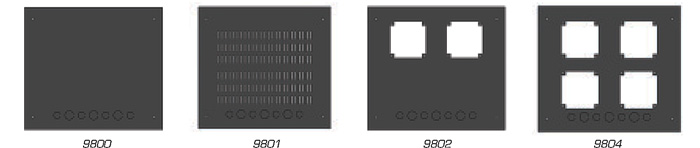

Optional tops fit 9220W and 9225W racks. Rack Top Options
