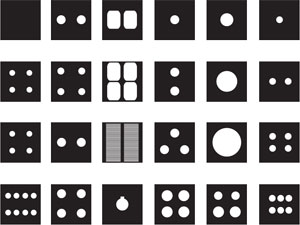

908x Modular Jack Plate

Modular Jack Plate

The Modular Jack Plates rear - mount to the 9080 modular jack panel and are available in a variety of prepunched jack configurations or blank for custom punching.

Application

Custom panel fabrication.

Features

16 ga. CRS with black baked textured enamel finish.
Easily attach to 9080 modular panel.
Available in many different jack configurations or blank aluminum for easy custom punching.
Custom punching available on request..

Code	Height	Width	Weight(lbs)	Punched For Jack	Material	Finish
9081	3.20"	3"	.10	blank (none)	16 ga. CRS	black texture enamel
9082	3.20"	3"	.14	four 1/4" phone	16 ga. CRS	black texture enamel
9082 - 1	3.20"	3"	.13	four 7/16" shielded	16 ga. CRS	black texture enamel
9083	3.20"	3"	.14	eight RCA	16 ga. CRS	black texture enamel
9084 - 2	3.20"	3"	.13	two XLR male	16 ga. CRS	black texture enamel
9084 - 24	3.20"	3"	.11	four XLR male	16 ga. CRS	black texture enamel
9085 - 2	3.20"	3"	.12	two XLR female	16 ga. CRS	black texture enamel
9085 - 4	3.20"	3"	.19	four XLR female	16 ga. CRS	black texture enamel
9086 - 1	3.20"	3"	.10	one receptacle	16 ga. CRS	black texture enamel
9086 - 2	3.20"	3"	.06	two receptacles	16 ga. CRS	black texture enamel
9087	3.20"	3"	.09	vented plate	16 ga. CRS	black texture enamel
9088	3.20"	3"	.12	one Cannon AP/EP	16 ga. CRS	black texture enamel
9089 - 1	3.20"	3"	.13	one "D"	16 ga. CRS	black texture enamel
9089 - 2	3.20"	3"	.12	two "D"	16 ga. CRS	black texture enamel
9089 - 3	3.20"	3"	.12	three "D"	16 ga. CRS	black texture enamel
9089 - 4	3.20"	3"	.11	four "D"	16 ga. CRS	black texture enamel
9090	3.20"	3"	.14	twist lock midget	16 ga. CRS	black texture enamel
9091	3.20"	3"	.12	two - bolt twist lock	16 ga. CRS	black texture enamel
9092	3.20"	3"	.10	three - bolt twist lock	16 ga. CRS	black texture enamel
9093	3.20"	3"	.12	2 XLR male + 2 XLR fml	16 ga. CRS	black texture enamel
9094 - 1	3.20"	3"	.15	one BNC	16 ga. CRS	black texture enamel
9094 - 2	3.20"	3"	.14	two BNC	16 ga. CRS	black texture enamel
9094 - 4	3.20"	3"	.13	four BNC	16 ga. CRS	black texture enamel
9094 - 6	3.20"	3"	.12	six BNC	16 ga. CRS	black texture enamel
