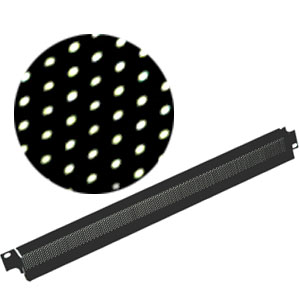

9025 Security Cover

Perforated Vent Panel

Perforated vent panels are punched with 0.062" holes to allow air to circulate in rack enclosures.

Application

Any rack enclosure in which heat buildup could be a problem. (i.e. power amp racks, etc.)

Features

  • Helps prevent heat build up in the rack by allowing air to circulate.
  • 16 ga. CRS with black powder coat finish.
  • Available in four sizes to fit one, two, three, or four rack spaces.
  • 1/2" flange on top and bottom for extra strength.
  • Available with small perforations (1062" holes)





Code Rack
Space
Height Width Weight (lbs) Perforation
size
Material Finish
9027 - 1 1 1.75" 19"  0.35 small (.062") 16 ga. CRS black powder coat
9027 - 2 2 3.50" 19"  0.65 small (.062") 16 ga. CRS black powder coat
9027 - 3 3 5.25" 19"  1.00 small (.062") 16 ga. CRS black powder coat
9027 - 4 4 7.00" 19"  1.35 small (.062") 16 ga. CRS black powder coat
