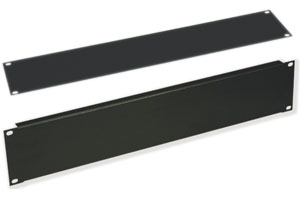

Blank Panel

Blank Panel

Flat Blank Panels offer an economical alternative for applications that do not require the added strength offered by a formed flange.

Application

Light duty or permanent installations. Custom panels, patch bays or to fill empty spaces in a rack

Features

  • Economically priced.
  • Completely flat / no formed edges.
  • Made from 16 ga. CRS.
  • Standard rack width (19").
  • Sizes to fit up to nine spaces.
  • Professional black powder coat finish.

Formed Blank Rack Panels are available in nine sizes to fit one to nine rack spaces. They feature a 0.50" flange for additional strength and are available in your choice of steel or aluminum.

Features

  • Available in two styles: 16 ga. aluminum black powder coat finish, or 16 ga. CRS with black powder coat finish.
  • Powder coat resists scratches (very roadworthy).
  • Nine sizes to fit one to nine rack spaces.
  • 1/2" flange on top and bottom for extra strength.



Flat Blank Panel
Code Rack Space Height Width Weight (lbs) Material Finish
9000 - 1 1 1.75" 19" 0.65 16 ga. CRS black powder coat
9000 - 1 2 3.50" 19" 1.30 16 ga. CRS black powder coat
9000 - 3 3 5.25" 19" 1.95 16 ga. CRS black powder coat
9000 - 4 4 7.00" 19" 2.60 16 ga. CRS black powder coat
9000 - 5 5 8.75" 19" 3.25 16 ga. CRS black powder coat
9000 - 6 6 10.50" 19" 3.90 16 ga. CRS black powder coat
9000 - 7 7 12.25" 19" 4.55 16 ga. CRS black powder coat
9000 - 8 8 14.00" 19" 5.20 16 ga. CRS black powder coat
9000 - 9 9 15.75" 19" 5.85 16 ga. CRS black powder coat
Formed Blank Panel
9001 - 1 1 1.75" 19" 0.80 16 ga. CRS black powder coat
9001 - 2 2 3.50" 19" 1.40 16 ga. CRS black powder coat
9001 - 3 3 5.25" 19" 2.10 16 ga. CRS black powder coat
9001 - 4 4 7.00" 19" 2.80 16 ga. CRS black powder coat
9001 - 5 5 8.75" 19" 3.50 16 ga. CRS black powder coat
9001 - 6 6 10.50" 19" 4.20 16 ga. CRS black powder coat
9001 - 7 7 12.25" 19" 5.00 16 ga. CRS black powder coat
9001 - 8 8 14.00" 19" 5.60 16 ga. CRS black powder coat
9001 - 9 9 15.75" 19" 6.30 16 ga. CRS black powder coat
9002 - 1 1 1.75" 19" 0.24 aluminum black powder coat
9002 - 2 2 3.50" 19" 0.48 aluminum black powder coat
9002 - 3 3 5.25" 19" 0.72 aluminum black powder coat
9002 - 4 4 7.00" 19" 0.95 aluminum black powder coat
9002 - 5 5 8.75" 19" 1.19 aluminum black powder coat
9002 - 6 6 10.50" 19" 1.43 aluminum black powder coat
9002 - 7 7 12.25" 19" 1,67 aluminum black powder coat
9002 - 8 8 14.00" 19" 1.90 aluminum black powder coat
9002 - 9 9 15.75" 19" 2.14 aluminum black powder coat
