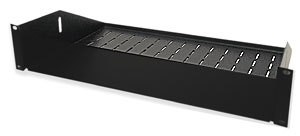

Vented Shelf
Vented Shelves have the same specifications as the 9030 series shelves, but also have ventilation slots to improve air circulation in the rack and are available in 5 sizes.
Application
Rack mounting of equipment requiring maximum cooling.
Features
- 16 ga. CRS with black powder coat finish.
- One piece construction.
- Slotted holes provide freedom of air passage to equipment and accessibility of back stop clamp #9137.
- Available in 5 sizes to fit one to four rack spaces.
- Slotted side holes for part #9135 hold down bracket.
- Two - space shelf available in standard depth (11") 9031 - 2 and deep version (14 3/4" depth) 9031 - 2D.
|
